PVC Housing Crane Parts HFP52 Power Rail Enclosed Conductor System

PVC Housing Crane Parts HFP52 Power Rail Enclosed Conductor System

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  PVC Housing Crane Parts HFP52 Power Rail Enclosed Conductor System Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Nante
Certification: ISO9001:2008
Model Number: HFP52
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: N/A
Packaging Details: Seaworthy packings into containers
Delivery Time: 30days or according to client's need
Payment Terms: L/C, T/T
Supply Ability: 90000 pcs per year
Detailed Product Description
Color: Green, White Or Orange Conductor Material: Copper
Pole: 4 Current: 50A~140A
Standard Length: 4m
High Light:

parts of an overhead crane

,

overhead crane components

HFP52 Powerail Enclosed Conductor System



Quick Details
•Standard length; 4m or 6m.
•Current: 50A~140A
•Conductor material: copper
•Single powerline, easytrack, single flexline, multiline, boxline


Detailed Product Description
The bottom opening can be sealed with a neoprene sealing strip to keep debris and fumes out. The current collector is self-guided in these systems and only needs to be towed with a towing arm. Multiple copper conductors in an enclosure (aluminium or PVC housing) is available in 3 to 16 conductors and amperage capacities from 30 to 240.

Application
The ranges of applications of HFP Power Rail Enclosed Conductor System

  1. Overhead and elongated tracks for cranes.
  2. Electric hoists, electric tools, stacking systems.
  3. Electric tools
  4. Other applications for supplying power to moving power load.


Design features
Compact arrangement, corrosion resistance and simple assembly are its essential features.

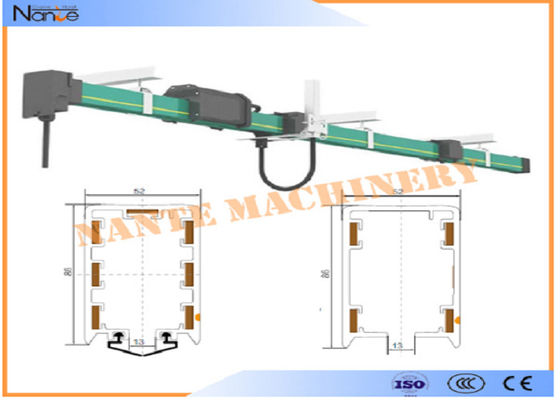

Housing

Color green, PVC housing for 4 conductors. Standard section 4 m.

Other sections are available.

The ground conductor is identified by international color code.

Phase reversing prevented by design of the collector and housing.



PVC Shrouded Conductor Rail
Technical Parameters



Model Pole No. Cross section Max. current Leakage-distance Max. voltage Resistance Weight
HFP52-4-10/50 4 10 50 55 600 1.656 2.05
HFP52-5 -10/50 5 10 50 15 600 1.656 2.14
HFP52-6-10/50 6 10 50 15 600 1.656 2.23
HFP52-7-10/50 7 10 50 15 600 1.656 2.32
HFP52-4-15/80 4 15 80 55 600 1.137 2.32
HFP52-5-15/80 5 15 80 15 600 1.137 2.44
HFP52-6-15/80 6 15 80 15 600 1.137 2.58
HFP52-7-15/80 7 15 80 15 600 1.137 2.71
HFP52-4-20/100 4 20 100 55 600 1.011 2.47
HFP52-5-20/100 5 20 100 15 600 1.011 2.65
HFP52-6-20/100 6 20 100 15 600 1.011 2.83
HFP52-7-20/100 7 20 100 15 600 1.011 2.99
HFP52-4-25/120 4 25 120 55 600 0.713 2.63
HFP52-5-25/120 5 25 120 15 600 0.713 2.83
HFP52-6-25/120 6 25 120 15 600 0.713 3.02
HFP52-7-25/120 7 25 120 15 600 0.713 3.27
HFP52-4-35/140 4 35 140 55 600 0.522 2.97
HFP52-5-35/140 5 35 140 15 600 0.522 3.25
HFP52-6-35/140 6 35 140 15 600 0.522 3.58
HFP52-7-35/140 7 35 140 15 600 0.522

3.87
