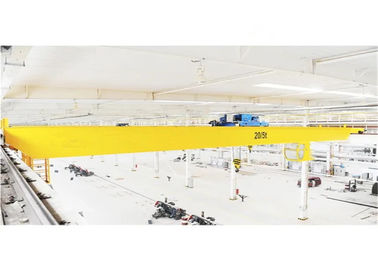

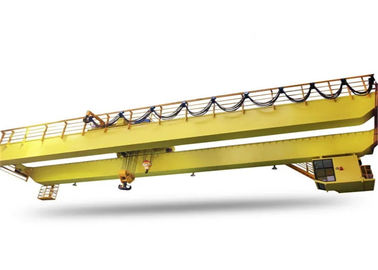

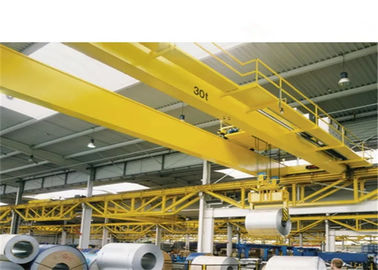

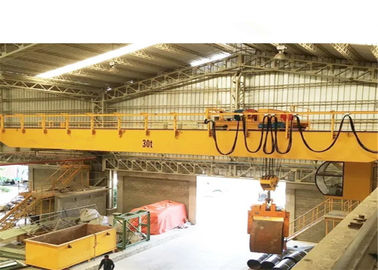

Warehouse Specialized Double Girder Hoist Crane 10 -50ton capacity in Yellow A5 work duty

Good quality Double Girder Overhead Cranes for sales
Good quality Double Girder Overhead Cranes for sales
I'm Online Chat Now

Warehouse Specialized Double Girder Hoist Crane 10 -50ton capacity in Yellow A5 work duty

China Warehouse Specialized Double Girder Hoist Crane 10 -50ton capacity in Yellow A5 work duty supplier
Warehouse Specialized Double Girder Hoist Crane 10 -50ton capacity in Yellow A5 work duty supplier Warehouse Specialized Double Girder Hoist Crane 10 -50ton capacity in Yellow A5 work duty supplier Warehouse Specialized Double Girder Hoist Crane 10 -50ton capacity in Yellow A5 work duty supplier Warehouse Specialized Double Girder Hoist Crane 10 -50ton capacity in Yellow A5 work duty supplier

Large Image :  Warehouse Specialized Double Girder Hoist Crane 10 -50ton capacity in Yellow A5 work duty

Product Details:

Place of Origin: China
Brand Name: NANTE
Certification: ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 5000usd-10000usd
Packaging Details: bundle, wood
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 500set/year
Contact Now
Detailed Product Description
Lifting Capacity: 10-50 Lifting Height: 6-18
Span: 7.5-25.5 Working System: A3-A5
Power Source: Three-Phase A C 50HZ 380V Working Environment Temperture: 0~40





Features/Advantages:

1. High efficiency with smooth and silent running.
2. Suitable for high lifting capacities and heavy duty class
3. Minimum investment requirements for maximum space optimization
4. Safe and smooth running with safety accessories
5. Reasonable, compact and beautiful structure
6. Smooth starting and stopping performance
7. Low noise, commodious cabin and good view space
8. Maintenance-free for lifting mechanism and excellent changeability for spare parts
9. Energy saving with minimum possible power
10. All electric parts from world famous brands
11. 2 years spare parts to avoid any delays once breaking down occurs
12. Suitable for industry power supply around the world
13. Precise and experienced designing to save each coin for clients
14. Overloading, over-volt, over-current protections included to ensure 100% safety
15. Accurate designing and advanced device to guarantee synchronous running in each side



When heavy loads and wide spans are required, the double girder overhead cranes show their strength. They consist of two torsion-free box girders. This makes them especially suitable for lifting and transporting loads over 50T and for span of more than 35m.
Double girder overhead cranes are available with load capacities up to 50T and with spans up to 35 m. Articulated end carriage joints ensure positive contact of all four wheels with the track. The range of fixing arrangements allows the appropriate integration of double girder travelling cranes into new buildings as well as into existing buildings. Just as with all other types of double girder travelling cranes, the profiles of the main girder are optimally produced using computers so that maximum performance with a minimum of dead-weight can be achieved. An advantage that has financial benefits.

Double girder overhead crane with hoist are widely used in the following applications:
1. Light duty cranes for repair shops, light assembly operations, service buildings, light warehouses, where service requirements are infrequent.
2. Medium duty cranes for machine shops and general industrial use both indoor and outdoor application.
3. Extra heavy duty cranes for steel mills and other heavy machine shops, steel warehouses, heavy fabrication shops, paper mills etc. with magnet and bucket operation for scrap yards, fertilizer plants & induction furnace.
4. Extra heavy duty cranes for steel mills and other heavy engineering purposes. Cranes designed for hot metal application on request.

Design features include:
DESIGN:
Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components
Structure:
Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.
MOTORS:
Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.
Variable Frequency Drives & Remote Controls:
We also offer Variable Frequency Drive in hoisting, cross travel, long travel for stepless speed control as an optional feature. We also provide radio remote control cranes for application in inaccessible and hazardous areas.
Brakes
Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.
Controls
Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.
ELECTRICAL PANEL:
Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuseless circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.
PAINTING:
Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.
LIMIT SWITCHES:
To prevent over hoisting & over lowering of hook.



Technical Parameter of Double Girder Overhead Crane with Winch
Capability 5 10 16/3.2
Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Max. Lifting Height(m) Main hook 16 16
Aux. hook - 18
Speed(m/min) Lifting Mechanism Main A5 11 7.56 7.9
A6 15.5 13.3 13
Aux. A5 - 19.7
A6 - 19.7
Cross Travel Mechanism 37 43 44.6
Long Travel Mechanism A5 89 91 90 91 84 84 87
A6 115.5 116.8 115.5 116.8 112.5 112 101
Motor(Type/kW) Lifting Mechanism Main A5 YZR160L-6Z/13 YZR180L-8Z/13 YZR225M-8Z/26
A6 YZR180L-6Z/15 YZR200L-6Z/22 YZR250M1-6/37
Aux. - - YZR160L-6Z/13
Cross Travel Mechanism YZR112M-6Z/1.8 YZR132M-6Z/2.5 YZR132M2-6/4
Long Travel Mechanism A5 YZR132M2-6/2× 4 YZR160M1-6/2× 6.3 YZR132M2-6/2× 4 YZR160M1-6/2× 6.3 YZR160M1-6/2× 6.5 YZR160M2-6/2× 8.5
A6 YZR160M1-6/2× 5.5 YZR160M2-6/2× 7.5 YZR160M1-6/2× 5.5 YZR160M2-6/2× 7.5 YZR160M2-6/2× 7.5 YZR160L-6/2× 11
Weight(t) Trolley A5 1.81 3.36 6.3
A6 2.21 3.47 6.59
Total Weight A5 13 14 16 19 21 26 29 32 15 17 19 21 24 28 32 35 19.2 21 23 27 30 34 38 41
A6 14 15 17 20 22 27 31 34 15 17 20 22 25 30 33 36 21 23 25 29 32 36 40 44
Max. Wheel Load(t) A5 8 8.5 9.1 9.8 10.4 11.7 12.5 13.2 10.9 11.5 12.3 12.9 13.6 14.9 15.8 16.6 14.6 15.5 16.3 18.8 19.3 20.5 21.4 22.3
A6 8.5 9.1 9.2 10.4 11.1 12.5 13.3 13.8 11.1 11.8 12.6 13.1 13.8 15.4 16.3 17.1 15.5 16.4 17.3 19.4 20.3 21.4 22.3 23.2
Recommendate Rail Type QU70
Power 3P AC  380V  50Hz

  Technical Parameter of Double Girder Overhead Crane with Winch
Capability 20/5 32/5 50/10
Span(m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Max. Lifting Height(m) Main hook 12 16 12
Aux. hook 14 18 16
Speed(m/min) Lifting Mechanism Main A5 7.5 7.51 5.9
A6 12.45 9.5 7.8
Aux. A5 19.5 19.7 13.2
A6 19.5 19.7 13.2
Cross Travel Mechanism 44.6 42.4 38.5
Long Travel Mechanism A5 84 87 87.6 74.2 75.2 85.9
A6 112 101 101.4 101.8 85.5 87.3
Motor(Type/kW) Lifting Mechanism Main A5 YZR225M-8Z/26 YZR280S-10Z/42 YZR280M-10Z/55
A6 YZR250M1-6/45 YZR280M-8/55 YZR315S-8/75
Aux. YZR180L-6Z/17 YZR180-6Z/17 YZR200L-6Z/26
Cross Travel Mechanism YZR132M2-6/4 YZR160M1-6/6.3 YZR160M2-6/8.5
Long Travel Mechanism A5 YZR160M1-6/2× 6.3 YZR160M2-6/2× 8.5 YZR160M2-6/8.5× 2 YZR160L-6/13× 2 YZR180L-8/13× 2
A6 YZR160M2-6/2× 7.5 YZR160L-6/2× 11 YZR160L-6/11× 2 YZR180L-8/11× 2 YZR200L-8/15× 2
Weight(t) Trolley A5 6.9 10.9 15.5
A6 7.28 11.7 16
Total Weight A5 20 22 24 29 32 37 40 43 27 30 33 38 41 46 50 54 37 40 44 49 53 58 62 68
A6 22 24 27 31 34 39 43 46 28 31 35 40 43 48 52 56 40 43 48 52 56 62 67 72
Max. Wheel Load(t) A5 16.5 17.6 18.5 20.7 21.6 23 23.9 24.9 24.8 26.4 27.8 30.1 31.1 33.1 34.4 35.4 36.5 39.9 42 43 45.6 47.4 48.7 50.3
A6 17.7 18.8 19.9 22.1 23.3 24.3 25.5 26.5 26.4 28.2 29.6 31 32.4 34 35 36.4 37.9 40.3 42.5 44.4 46 47.8 49.2 50.8
Recommendate Rail Type QU70 QU70 QU80
Power 3P AC  380V  50Hz
