Product Details:
Payment & Shipping Terms:
|
| Color: | Yellow | Name: | Electric Chain Hoist |
|---|---|---|---|
| Certification: | CE | Origin: | China |
| High Light: | chain hoist manual,manual cable hoist |
||
Catalog:
| Model | CD1,MD1 | ||||||
| Capacity | Tons | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Lifting height | M | 6,9,12 | 6,9,12,18,24,30 | 9,12,18,24,30 | |||
| Lifting speed | M/min | 8(0.8/8) | 7(0.7/7) | ||||
| Travel speed | M/min | 20/30 | |||||
| Wire rope | Dia.(mm) | 4.8 | 7.4 | 11 | 13 | 15 | 15 |
| Spec. | 6*37+FC | ||||||
| Hoisting Motor | Type | ZD 121-4 | ZD 122-4 | ZD 131-4 | ZD 132-4 | ZD 141-4 | ZD 151-4 |
| ZD S1 0.2/0.8 |
ZD S1 0.2/1.5 |
Z S 1 0.4/3.0 |
ZD S1 0.4/4.5 |
ZD S1 0.8/7.5 |
ZD S1 1.5/13 |
||
| Power(kw) | 0.8 (0.2/0.8) |
1.5 (0.2/1.5) |
3 (0.4/3.0) |
4.5 (0.4/4.5) |
7.5 (0.8/7.5) |
13 (1.5/13) |
|
| Rotation Speed(r/min) | 1380 | 1400 | |||||
| Current(A) | 2.2 (0.72/2.4) |
4.3 0.72/4.3) |
7.6 (1.25/7.6) |
11 (2.4/11) |
18 (2.4/18) |
30 (5.2/30) |
|
| Travel Motor | Type | ZDY 111-4 | ZDY 112-4 | ||||
| Power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8*2 | |
| Rotation Speed(r/min) | 1380 | ||||||
| Current(A) | 0.72 | 0.72 | 1.25 | 1.25 | 2.4 | 2.4 | |
| Power | AC 380V, 50HZ, 3 Phase | ||||||
Application:

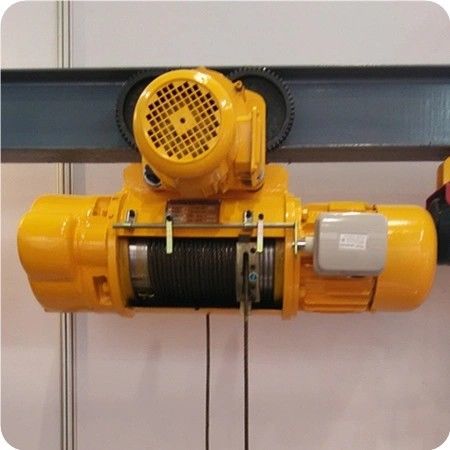

Model CD1,MD1 Electric Wire Hoist is a small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes.
With slight modification, it can also be used as a winch.
It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Model CD1 electric hoist has only normal speed, which can satisfy normal application.
Model MD1 Electric Hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.
Note:
The standard lifting height is 6,9,12,18,24 and 30 meters.
The lifting speed can be single speed or double speed, even multi-speed with frequency inverters.
The suitable rail for the low-headroom hoist is H-type rail, and I-type rail is also available.
The recommended rope reeving of this kind of hoist is 2/1, 4/2 or 4/1.
The normal travelling speed is 20m/min, and 12.5,16,25,32m/min by request.
Package:
Standard strong PLY wooden case
Strong wooden pallet.
